About P20

About P20 Android OS firmware upgrade


We will regularly optimize and maintain Android system firmware. Support OTA online update Android firmware. Operation video guide:https://youtu.be/LgxDm_96fFg


Note: If the projector can be turned on normally, please use the online upgrade. Do not update the firmware with a USB flash drive. If you encounter problems, please restore the factory settings first. If you must update the firmware, please contact customer service and provide the serial number of the projector and Android to the customer service. The system version, because the electronic components of the projector motherboards produced in different batches have changed, and different firmwares correspond to different motherboards. If the wrong firmware is used, the projector will not be able to boot. Please proceed with caution.



If there is a problem with the projector’s Android firmware and it cannot be upgraded online, You can upgrade through USB flash drive


Operation guidance:


a. Click the icon below to download the android OS firmware and unzip it.

b. Unzip the firmware to the root directory of the U disk. (Note: Do not put it in other folders. The format of USB flash disk must be FAT32)

c. Then insert the U disk into the USB interface of the projector,

d.Then connect the power cord of the projector, Turn ON the power switch on the back of the projector, press and hold the power button to upgrade, the projector will automatically upgrade.

e. Wait for the projector to automatically shut down, and then load all the APPs after it is automatically turned on, about 20 minutes. It can be used normally.


Note: Do not disconnect the power to the projector when upgrading. Otherwise it will cause the projector to be abnormal and slow to start. Need to upgrade again.


P20 Firmware upgrade user guide video: https://youtu.be/vNgJfPFhCcc


Note: Due to the continuous upgrading and improvement of products, the hardware motherboard of the projector will also be continuously upgraded, and the Android system firmware corresponding to different motherboards is also different. You can download the following corresponding firmware according to the serial number at the bottom of the projector to update the projector firmware . Note: Flashing the wrong firmware will result in the projector not working. If anything is unclear, please contact customer service and provide the serial number.

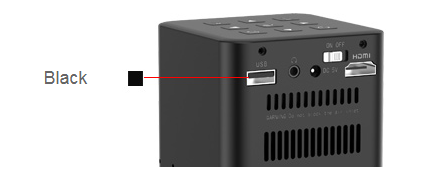

Firmware 1,  the system firmware of P20 projectors produced before June 2021, first check the serial number barcode on the bottom of the projector, if there is no "MT4" text on the barcode, please click the button below to download (the barcode usually has "MT3xxxxxxx" ", "xxMT2xxxxxxx" or "BYDZ" and other text)


















Serial NO.: MT3xxxxxx/MT2xxxxxx/and others
P20 Android firmware download
Firmware version: 0818
Black

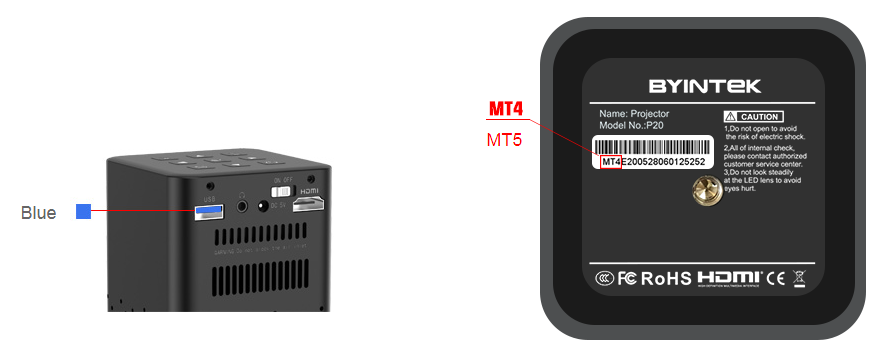

Firmware 2, the system firmware of the projector produced after June 2021, the serial number of the projector has the text "MT4xxxxxxxxxxx" on the bottom of the projector. Please click the button below to download the firmware

Serial NO.:MT5 or MT4xxxxxxxxxx
P20 Android firmware download (MT4)
Firmware version: 0929
MT5
Blue

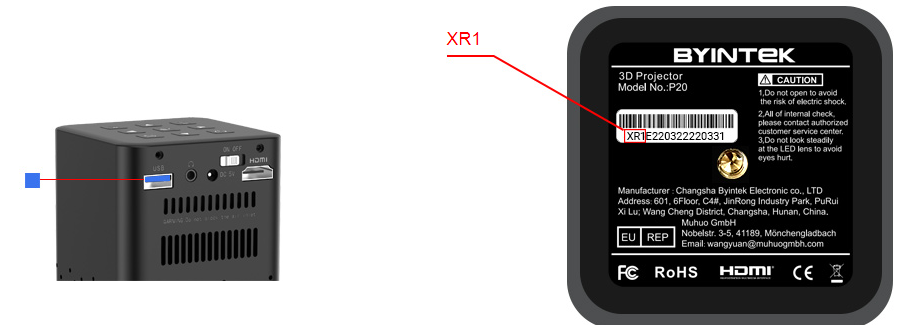

Firmware 3, For 3D Version P20 only, the system firmware of the projector produced after February 2022, the serial number of the projector has the text "XR1Exxxxxxxxxxx" on the bottom of the projector. Please click the button below to download the firmware

Serial NO.:XR1xxxxxxxxxx
P20 3D Version Android firmware download (XR1)
Firmware version: 20220803
XR1

With the development of science and technology, in the current Bluetooth function, it is no longer used for Bluetooth to transfer files. The role of Bluetooth is only to transmit sound. The Bluetooth file transfer function has been replaced by APP.

Wifi, Bluetooth, wifi-display (airplay, Miracast, DLNA) are all different functions. The effects are different.



Many buyers often misunderstand the function of Bluetooth. For example: the following 3 types are different functions.





1. Wifi-display function, the projector displays the image and sound of the mobile phone screen through the mirroring function of the smartphone. This is not achieved using the Bluetooth function. It is achieved through the screen mirroring function that comes with the phone.



1-1. ios smartphone realizes screen mirroring via airplay function.



Operation instruction video connection: https://youtu.be/DzCJ3W1rSXw



1-2. Android smartphones realize screen mirroring via miracast function.



Operation instruction video connection: https://youtu.be/aqAd00g6tI0



Note: Not all Android smartphones support the screen mirroring function. For smartphones that support screen mirroring, there are options similar to this in the "Settings" or "More Functions" options of the smartphone, for example: "Screen mirroing", "Wifi-display", "multi-screen", "screen projection", "play to", "media output", etc.


If the projector's pre-installed screen mirroring app is not compatible with your Android smartphone, you can connect the Android phone and the projector to the same wifi, then enter the Eshare interface of the airplay option on the projector homepage, enter the IP address on the screen in the browser of the phone, download and install the Eshare APP, and screen mirroring via Eshare APP.


1-3.Realize wifi-display via Eshare APP

If your projector’s screen mirroring function is pre-installed with Eshare, and your Android phone cannot connect to the projector, you can install the Eshare APP on your phone for screen projection.Download the designated Esahre APP according to the video

Operation instruction video connection: https://youtu.be/Q51hJu9Yel0


1-4. Wifi-display for windows OS PC via Esahre APP

Operation video guide: https://youtu.be/NvXfxSp-rbw


1-4-1. Connect your windows OS computer and projector IP address to the same network


1-4-2. Click the "Airplay" option on the projector homepage to enter the Eshare interface.


1-4-3. On the window OS computer, open this URL with a browser: http://cdn.sharemax.cn/app/EShareClient-STD.exe

download and install Eshare APP to the computer.


1-4-4. Click "EShareClient-STD" on the computer, and the name and IP address of the projector in the same network will appear, select it, and then click start to succeed



Tips:

Some video apps with copyright protection cannot support wireless projection from other devices to the projector. For example, Netflix, iTunes Movie, Google Movie, Amazon Prime do not support this function on some smartphone and computers. All Android system projectors on the market are the same.


1. How to use BYINTEK P20 projector to watch 3D movies with 3D glasses, and how to play 3D?


1. To use the correct DLP shutter 3D glasses

2. To play the correct 3D video, such as 3D video arranged by SBS(side by side), 3D video arranged by TNB(Top and bottom).

3. Use MX Player to play the 3D source in the U disk. There is a test 3D source in the MX player.

Supports 3D video sources input by HDMI interface,

but does not support 3D video sources of online video.

4. After opening the 3D Video, operate according to the video on the following website.

Operation video guide: https://youtu.be/_yKZ2P7e84Y


About 3D

Read U disk through USB interface, play 3D video with MX player, support side by side, top and bottom shutter 3D video.

Among them, videos in H265 and AVS formats can support up to 4K/30HZ.

Other AVI, MP4 and other formats of video can support up to 1080p/60Hz, but do not support 4K.

HDMI interface can support Blu-ray DVD to play 3D, support Side by side, Top and bottom arranged 3D video

The 1080p version of youtube pre-installed on the projector does not support switching to 3D mode.


2. How to set BYINTEK P20 as a Bluetooth speaker?


Operation video guide: https://youtu.be/zu7zJsvIh1Q


3. How to adjust the color (color temperature) of BYINTEK P20 images?


Operation video guide: https://youtu.be/b2yxwutV47o


4. How to adjust the electronic zoom of BYINTEK P20?


Operation video guide: https://youtu.be/IMAf_62DfO8


5. How to adjust corner keystone correction for BYINTEK P20 projection from the side?


Operation video guide: https://youtu.be/4FnAz3gfM8U


6. How to adjust the brightness of the BYINTEK P20 screen?


Operation video guide: https://youtu.be/qGtkWqoxMfk


7. How to adjust the flip BYINTEK P20 graphics screen?


Operation video guide: https://youtu.be/oeHOGV9-haE


8. How to set the BYINTEK P20 to directly enter the HDMI signal channel after booting?


Operation video guide: https://youtu.be/wMADVO0OI-Q


9. How to restore the factory of BYINTEK P20 Pro projector?

Operation video guide:https://youtu.be/0iQrg-alz4k


10. How to turn off the boot music?

Operation video guide:https://youtu.be/w4y7EmiBC7g


11. How to solve Fire TV stick 4K connected to the projector to play movies no sound?


Turn off Dolby in the setting sound of Fire TV stick 4K.

         Step:"setting"----"display&Sound"---"Audio"---"Dolby digital output"---"Dolby digital plus OFF", Turn off Dolby,Do it a few times,Confirm whether Dolby is successfully turned off.

         Tips: Some sources can work normally without turning off Dolby and setting them to automatic mode. If there is still no sound in automatic mode, you must turn off Dolby.

         Operation video guide:https://youtu.be/2S77xzLHC84



13. The original infrared remote control is not easy to control on APPs such as netflix, how to solve it?


Our remote control has mouse function, Long press “ 三 ” key switch to mouse mode.

If you still don't like it, it is recommended to use the mouse to operate, or buy a 2.4G "air mouse", choose the kind of air mouse with remote control on one side and keyboard on the other side. This air mouse is suitable for all Android system projectors. This kind of remote control performance Very good, and the price is not expensive.



14. How to read PDF, PPT and word documents in USB flash driver?


You can download "Microsoft PowerPoint" on the APP store to read PPT, or you can download and install "Acrobat" APP to read PDF

Or download WPS APP

You can also click the icon below to download the WPS installation package, copy it to the USB flash disk, insert the USB flash disk into the projector, open the file management of the projector, find the installation package of "WPS. APK", and install it.


"WPS.apk" Download website: https://drive.google.com/drive/folders/1fVYJArSurTEDmEPxXYQLtjJBUGB9ttJV?usp=sharing

How to operate WPS APP to read PPT, Word? Operation instruction video: https://youtu.be/d7vQcDbeWRg








21. How to connect computer to BYINTEK DLP projector?


Operation video guide:https://youtu.be/EOxQkgPhN80


22. How to install input methods in different languages in BYINTEK Projector?


Operation video guide:https://youtu.be/aMaFvpx-UD8


Step:


Input method installation package download: https://drive.google.com/drive/folders/12FZ3rsLOCAgq16BO2QalrDzlfsNfD8Yy


1. After downloading, copy the input method APK installation package to the U disk.


2. Insert the U disk copy into the USB port of the Android projector


3. Use the remote control to enter the projector's file management and find the installation package on the U disk


4. Select the APK file, press OK, and install it according to the prompts.


5. In the "Settings" of the projector, find the position of the keyboard input method switch, and switch to the input method you installed. Different projectors switch in different positions.


6. Switch the keyboard input method to the input method "Leankey Keyboard" that was just installed, and you can test it. When entering text on other apps, a virtual keyboard will pop up, and you can switch languages in different countries by clicking the circular icon in the keyboard. .


23. The projector is pre-installed with Youtube, Netflix or other apps. After the update is prompted, the update does not work properly.

How to solve the problem that Netflix, Youtube, Prime video and other apps do not work and the remote control is not easy to control.


Don't worry, enter the "Settings" interface of the projector, find and click "Restore Factory Settings".

Operation video guide:https://youtu.be/0iQrg-alz4k

After the recovery is successful, use the pre-installed version directly, and do not operate any upgrade prompted by the pre-installed APP.

If the APP arrives when it is really unusable, we will update the APP together when updating the version of the Android system by optimizing on the Google server.


For example: How to solve the problem that netflix cannot be used, skip the upgrade according to the operation below, and click login in the upper right corner.

If the remote control cannot be controlled, switch the remote control to mouse mode, Long press "三" key switch to mouse mode.

WPS APK download
About the solution to the problem that the operation of netflix cannot be used after upgrading

P20 Series Projector Maintenance Guide


1. How to replace the BYINTEK P20 Projector’s motherboard and optical engine?


Operation instruction video connection: https://youtu.be/79M4p9shZ3E

Note:

1. Before operation, it is best to wear an anti-static wristband to remove the static electricity of the human body and prevent the static electricity of the human body from penetrating the optical engine.

2. Be sure to turn off the switch on the back of the projector before disassembling the projector.

3. After disassembling the upper cover of the projector, take a picture of the main board, and then when disassembling and changing the main board plug-in cable, you can refer to the photos you took to restore it to prevent the wrong connection cable.

4. Be careful when disassembling the cable, and don't be too violent.

5. When removing the battery cable, use tweezers to push out a part of the holder bit by bit according to the video, and then unplug the battery cable by hand.

6. When installing the optical engine, first align the part of the lens, and then press down on the optical engine.

7. When installing the antenna, the black one is the Bluetooth antenna, first install the middle part.
