About U70 Pro

About U70 Pro Android system firmware upgrade


We will regularly optimize and maintain Android system firmware. Support OTA online update Android firmware.Operation video guide:https://youtu.be/LgxDm_96fFg



Note: If the projector can be turned on normally, please use the online upgrade. Do not update the firmware with a USB flash drive. If you encounter problems, please restore the factory settings first. If you must update the firmware, please contact customer service and provide the serial number of the projector and the Android system to the customer service. Version, because the electronic components of the projector motherboards produced in different batches have changed, and different firmware corresponds to different motherboards. If the wrong firmware is used, the projector will not be able to boot. Please proceed with caution.


If there is a problem with the projector’s Android firmware and it cannot be upgraded online,

1. you can click the icon below to download the firmware and unzip it.

2. Unzip the firmware to the root directory of the U disk. Note: Do not put it in other folders.

3. Then insert the U disk into the USB interface of the projector,

4. and then connect the power cord of the projector,

5. press and hold the power button to upgrade, the projector will automatically upgrade.

6. Wait for the projector to automatically shut down, and then load all the APPs after it is automatically turned on, about 20 minutes. It can be used normally.


Note: Do not disconnect the power to the projector when upgrading. Otherwise it will cause the projector to be abnormal and slow to start. Need to upgrade again.


Firmware upgrade user guide video: https://youtu.be/0BVgdCxn9ss


Note:

a. The firmware version of the projector is a machine before June. After downloading the firmware, its name must be changed to "CUpgrade.bin" to be recognized by the projector.



b. The firmware version of the projector is after August. After the firmware is downloaded, the firmware name is "KUpgrade_540.bin".



c. In "Settings"-"Device Information" you can see the projector's firmware version information, such as K.25BY20210830en5, which means the firmware on August 30;

K.25BY20210630en5, which means the firmware on June 30.


Or you can copy the firmware to a USB flash drive, and then copy another one, one named "CUpgrade.bin" and one named "KUpgrade_540.bin".

Different versions of U70 Pro use the same firmware, only the firmware name is changed,

After updating once, if you need to manually update the firmware in the future, use "KUpgrade_540.bin" to name the firmware.


Warning: before brushing the firmware, please send the serial number at the bottom of the projector to the sales customer service to confirm the specific firmware version. Brushing the wrong firmware will cause the projector to directly break down and the user cannot repair it.

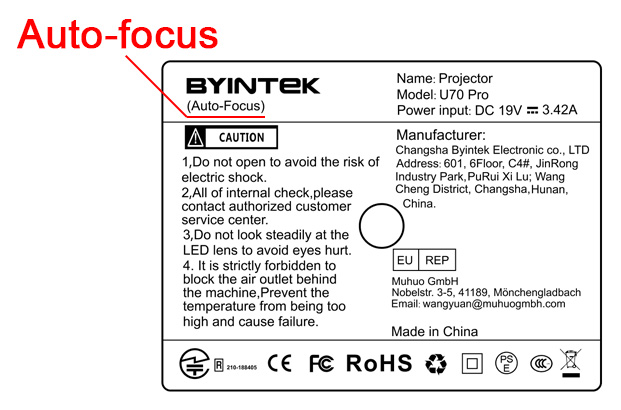

For Auto-focus Version only

For No Auto-focus Version

U70 Pro Android firmware download 03

For S/N: BY*****EK********** or xxxxxxPxxxxxxxxx

Firmware version:  K.24BY20230104en

Note: For Auto-focus Version only

U70 Pro Android firmware download 01

Firmware version: K.31BY20211026en5

      Note: For the projector with the serial number "SN: xxxxxxVxxxxxxxxxon the bottom of the projector

U70 Pro Android firmware download 02

Firmware version: K.24BY20230104en

Note: For the projector with the serial number "SN: xxxxxxPxxxxxxxxx" on the bottom of the projector

Arabic Patch Pack Download

Install this APK to add Arabic patches

Arabic system language adding steps:

1. Download this APK patch package and copy it to a U disk.

2. Then insert the USB flash drive into the projector.

3. Find and open and install the APK in the file manager, then the projector will have an Arabic language.

Tips: With the development of science and technology, in the current Bluetooth function, it is no longer used for Bluetooth to transfer files. The role of Bluetooth is only to transmit sound. The Bluetooth file transfer function has been replaced by APP.

Wifi, Bluetooth, wifi-display (airplay, Miracast, DLNA) are all different functions. The effects are different.



Many buyers often misunderstand the function of Bluetooth. For example: the following 3 types are different functions.



  Wifi-display function, the projector displays the image and sound of the mobile phone screen through the mirroring function of the smartphone. This is not achieved using the Bluetooth function. It is achieved through the screen mirroring function that comes with the phone.




1. Wifi-display for iphone/Ipad (iOS OS smart device)

Operation video guide:https://youtu.be/MFc36AQF-gw


2. Wifi-display for android smartphone/tablet/other Android OS devices

Operation video guide:https://youtu.be/odvJjIJ8edg


Note: Not all Android smartphones support the screen mirroring function. For smartphones that support screen mirroring, there are options similar to this in the "Settings" or "More Functions" options of the smartphone, for example: "Screen mirroing", "Wifi-display", "multi-screen", "screen projection", "play to", "media output", etc.


If the projector's pre-installed screen mirroring app is not compatible with your Android smartphone, you can connect the Android phone and the projector to the same wifi, then enter the Eshare interface of the airplay option on the projector homepage, enter the IP address on the screen in the browser of the phone, download and install the Eshare APP, and screen mirroring via Eshare APP.


3.Realize wifi-display via Eshare APP

If your projector’s screen mirroring function is pre-installed with Eshare, and your Android phone cannot connect to the projector, you can install the Eshare APP on your phone for screen projection.Download the designated Esahre APP according to the video

Operation instruction video connection: https://youtu.be/Q51hJu9Yel0


4. Wifi-display for windows OS PC via Esahre APP

Operation video guide: https://youtu.be/NvXfxSp-rbw


4.1. Connect your windows OS computer and projector IP address to the same network


4.2. Click the "Airplay" option on the projector homepage to enter the Eshare interface.


4.3. On the window OS computer, open this URL with a browser: http://cdn.sharemax.cn/app/EShareClient-STD.exe

download and install Eshare APP to the computer.


4.4. Click "EShareClient-STD" on the computer, and the name and IP address of the projector in the same network will appear, select it, and then click start to succeed



Tips:

Some video apps with copyright protection cannot support wireless projection from other devices to the projector. For example, Netflix, iTunes Movie, Google Movie, Amazon Prime do not support this function on some smartphone and computers. All Android system projectors on the market are the same.



4. How to set BYINTEK UFO U70 Pro to play 3D movies?

Operation video guide: https://youtu.be/_yKZ2P7e84Y


About 3D

Read U disk through USB interface, play 3D video with MX player, support side by side, top and bottom shutter 3D video.

Among them, videos in H265 and AVS formats can support up to 4K/30HZ.

Other AVI, MP4 and other formats of video can support up to 1080p/60Hz, but do not support 4K.

HDMI interface can support Blu-ray DVD to play 3D, support Side by side, Top and bottom arranged 3D video

The 1080p version of youtube pre-installed on the projector does not support switching to 3D mode.


5. How to adjust the cooling fan speed to the highest speed in U70?

Operation video guide: https://youtu.be/D7GgNsnUimc


6. How to switch BYINTEK UFO U70 Pro to Bluetooth speaker mode?

Operation video guide: https://youtu.be/88hpuCc75Lc


7. How to adjust the color (color temperature) of BYINTEK UFO U70 Pro images?

Operation video guide: https://youtu.be/LcWiTuKlJSg


8. How to adjust the electronic zoom of BYINTEK UFO U70 Pro?

Operation video guide: https://youtu.be/xEDfuROwRHw


9. How to adjust corner keystone correction for BYINTEK UFO U70 Pro projection from the side?

Operation video guide: https://youtu.be/VAxiNBsgiBg


10. How to adjust the brightness of the BYINTEK UFO U70 Pro screen?

Operation video guide: https://youtu.be/aIBOIL5NjJg


11. How to adjust the flip BYINTEK UFO U70 Pro graphics screen?

Operation video guide: https://youtu.be/LHtoofOhU5Q


12. How to set the BYINTEK UFO U70 Pro to directly enter the HDMI signal channel after booting?

Operation video guide:https://youtu.be/r9WK30nVAfg


13. BYINTEK U70 Pro online upgrade operation guide

(For New Setting UI) Operation video guide: https://youtu.be/R65vfVFZuWE

Steps:

Select "Settings" - "System Settings" - "OTA" - "Check Version" in turn, follow up the prompt operation upgrad


(For Old Setting UIOperation video guide:https://youtu.be/LgxDm_96fFg


14. How does BYINTEK UFO U70 Pro switch the system language?

Operation video guide:https://youtu.be/daNf9C9y2hM


15. How to turn off the startup music of BYINTEK UFO U70 Pro

Operation video guide:https://youtu.be/jgJDe7K0hMs


16. How to restore the factory of BYINTEK UFO U70 Pro projector?

Operation video guide:https://youtu.be/0iQrg-alz4k


17. How to check the product system firmware information version of BYINTEK U70 Pro projector?

Operation video guide:https://youtu.be/2J4SHkWXcK0



18. The original infrared remote control is not easy to control on APPs such as netflix, how to solve it?


Our remote control has mouse function, Long press “ 三 ” key switch to mouse mode.

If you still don't like it, it is recommended to use the mouse to operate, or buy a 2.4G "air mouse", choose the kind of air mouse with remote control on one side and keyboard on the other side. This air mouse is suitable for all Android system projectors. This kind of remote control performance Very good, and the price is not expensive.



19. How to solve Fire TV stick 4K connected to the projector to play movies no sound?


Turn off Dolby in the setting sound of Fire TV stick 4K.

         Step:"setting"----"display&Sound"---"Audio"---"Dolby digital output"---"Dolby digital plus OFF", Turn off Dolby,Do it a few times,Confirm whether Dolby is successfully turned off.

         Tips: Some sources can work normally without turning off Dolby and setting them to automatic mode. If there is still no sound in automatic mode, you must turn off Dolby.

         Operation video guide:https://youtu.be/2S77xzLHC84


20. How to read PDF, PPT and word documents in USB flash driver?


You can download "Microsoft PowerPoint" on the APP store to read PPT, or you can download and install "Acrobat" APP to read PDF

Or download WPS APP

You can also click the icon below to download the WPS installation package, copy it to the USB flash disk, insert the USB flash disk into the projector, open the file management of the projector, find the installation package of "WPS. APK", and install it.


"WPS.apk" Download website: https://drive.google.com/drive/folders/1fVYJArSurTEDmEPxXYQLtjJBUGB9ttJV?usp=sharing

How to operate WPS APP to read PPT, Word? Operation instruction video: https://youtu.be/d7vQcDbeWRg







21. How to install input methods in different languages in BYINTEK Projector?


Operation video guide:https://youtu.be/aMaFvpx-UD8


Step:


Input method installation package download: https://drive.google.com/drive/folders/12FZ3rsLOCAgq16BO2QalrDzlfsNfD8Yy


1. After downloading, copy the input method APK installation package to the U disk.


2. Insert the U disk copy into the USB port of the Android projector


3. Use the remote control to enter the projector's file management and find the installation package on the U disk


4. Select the APK file, press OK, and install it according to the prompts.


5. In the "Settings" of the projector, find the position of the keyboard input method switch, and switch to the input method you installed. Different projectors switch in different positions.


6. Switch the keyboard input method to the input method "Leankey Keyboard" that was just installed, and you can test it. When entering text on other apps, a virtual keyboard will pop up, and you can switch languages in different countries by clicking the circular icon in the keyboard. .


22. How to connect computer to BYINTEK DLP projector?


Operation video guide:https://youtu.be/EOxQkgPhN80


23. How to install input methods in different languages in BYINTEK Projector?


Operation video guide:https://youtu.be/aMaFvpx-UD8


Step:


Input method installation package download: https://drive.google.com/drive/folders/12FZ3rsLOCAgq16BO2QalrDzlfsNfD8Yy


1. After downloading, copy the input method APK installation package to the U disk.


2. Insert the U disk copy into the USB port of the Android projector


3. Use the remote control to enter the projector's file management and find the installation package on the U disk


4. Select the APK file, press OK, and install it according to the prompts.


5. In the "Settings" of the projector, find the position of the keyboard input method switch, and switch to the input method you installed. Different projectors switch in different positions.


6. Switch the keyboard input method to the input method "Leankey Keyboard" that was just installed, and you can test it. When entering text on other apps, a virtual keyboard will pop up, and you can switch languages in different countries by clicking the circular icon in the keyboard. .


24. How to install other versions of Netflix


You can find other versions of Netflix at this link:https://drive.google.com/drive/folders/19c_FxS5B43Tn0fiGsvjsg55GT5Ay_NRT?usp=drive_link


25. The projector is pre-installed with Youtube, Netflix or other apps. After the update is prompted, the update does not work properly.

How to solve the problem that Netflix, Youtube, Prime video and other apps do not work and the remote control is not easy to control.


Don't worry, enter the "Settings" interface of the projector, find and click "Restore Factory Settings".

Operation video guide:https://youtu.be/0iQrg-alz4k

After the recovery is successful, use the pre-installed version directly, and do not operate any upgrade prompted by the pre-installed APP.

If the APP arrives when it is really unusable, we will update the APP together when updating the version of the Android system by optimizing on the Google server.


For example: How to solve the problem that netflix cannot be used, skip the upgrade according to the operation below, and click login in the upper right corner.

If the remote control cannot be controlled, switch the remote control to mouse mode, Long press "三" key switch to mouse mode.



WPS APK download
About the solution to the problem that the operation of netflix cannot be used after upgrading

U70 Pro Series Projector Maintenance Guide


1. How to replace the BYINTEK U70 Pro Projector’s motherboard and optical engine?


Operation instruction video connection: https://youtu.be/FKdlxIpAYVY

Note:

1. Before operation, it is best to wear an anti-static wristband to remove the static electricity of the human body and prevent the static electricity of the human body from penetrating the optical engine.

2. Be sure to turn off the switch on the back of the projector before disassembling the projector.


2. How to replace the remote control head of BYINTEK U70 Pro projector?


Operation instruction video connection: https://youtu.be/rsDQCfPRTLQ
