About V30 Android OS firmware upgrade
We will regularly optimize and maintain Android system firmware. Support OTA online update Android firmware.
Operation video guide: https: //youtu.be/LgxDm_96fFg
Note: If the projector can be turned on normally, please use the online upgrade. Do not update the firmware with a USB flash drive. If you encounter problems, please restore the factory settings first. If you must update the firmware, please contact customer service and provide the serial number of the projector and Android to the customer service. The system version, because the electronic components of the projector motherboards produced in different batches have changed, and different firmwares correspond to different motherboards. If the wrong firmware is used, the projector will not be able to boot. Please proceed with caution.
If there is a problem with the projector’s Android firmware and it cannot be upgraded online, You can upgrade through USB flash drive
Operation guidance:
a. Click the icon below to download the android OS firmware and unzip it.
b. Unzip the firmware to the root directory of the U disk. (Note: Do not put it in other folders. The format of USB flash disk must be FAT32)
c. Then insert the U disk into the USB interface of the projector,
d.Then connect the power cord of the projector, Turn ON the power switch on the back of the projector, press and hold the power button to upgrade, the projector will automatically upgrade.
e. Wait for the projector to automatically shut down, and then load all the APPs after it is automatically turned on, about 20 minutes. It can be used normally.
Note: Do not disconnect the power to the projector when upgrading. Otherwise it will cause the projector to be abnormal and slow to start. Need to upgrade again.
V30 Firmware upgrade user guide video: https://youtu.be/vNgJfPFhCcc
About Vevshao V30 screen projection function
1. Wifi-display function, the projector displays the image and sound of the mobile phone screen through the mirroring function of the smartphone. This is not achieved using the Bluetooth function. It is achieved through the screen mirroring function that comes with the phone.
1-1. ios smartphone realizes screen mirroring via airplay function.
Operation instruction video connection: https://youtu.be/56bxLEl2Mf8
1-2. Android smartphones realize screen mirroring via miracast function.
Operation instruction video connection: https://youtu.be/aqAd00g6tI0
Note: Not all Android smartphones support the screen mirroring function. For smartphones that support screen mirroring, there are options similar to this in the "Settings" or "More Functions" options of the smartphone, for example: "Screen mirroing", "Wifi-display", "multi-screen", "screen projection", "play to", "media output", etc.
If the projector's pre-installed screen mirroring app is not compatible with your Android smartphone, you can connect the Android phone and the projector to the same wifi, then enter the Eshare interface of the airplay option on the projector homepage, enter the IP address on the screen in the browser of the phone, download and install the Eshare APP, and screen mirroring via Eshare APP.
1-3.Realize wifi-display via Eshare APP
If your projector’s screen mirroring function is pre-installed with Eshare, and your Android phone cannot connect to the projector, you can install the Eshare APP on your phone for screen projection.Download the designated Esahre APP according to the video
Operation instruction video connection: https://youtu.be/R1NvkKRbQZE
1-4. Wifi-display for windows OS PC via Esahre APP
Operation video guide: https://youtu.be/47QnnUVT6hw
1-4-1. Connect your windows OS computer and projector IP address to the same network
1-4-2. Click the "Airplay" option on the projector homepage to enter the Eshare interface.
1-4-3. On the window OS computer, open this URL with a browser: http://cdn.sharemax.cn/app/EShareClient-STD.exe
download and install Eshare APP to the computer.
1-4-4. Click "EShareClient-STD" on the computer, and the name and IP address of the projector in the same network will appear, select it, and then click start to succeed
Tips：
Some video apps with copyright protection cannot support wireless projection from other devices to the projector. For example, Netflix, iTunes Movie, Google Movie, Amazon Prime do not support this function on some smartphone and computers. All Android system projectors on the market are the same.
1、How does Vevshao V30 connect to wifi?
Operation video guide：https://youtu.be/paJnWqvclGU
2、How does Vevshao V30 connect to Bluetooth?
Operation video guide：https://youtu.be/Wlp8L43BBsw
3、How to set Vevshao V30 as a Bluetooth speaker?
Operation video guide: https://youtu.be/Bzvux5kbqis
4、How to adjust the flip Vevshao V30 graphics screen?
Operation video guide: https://youtu.be/Mt20eXF_nSA
5、How to switch system language of Vevshao V30?
Operation video guide：https://youtu.be/LsyGdTGYyLY
6、How to adjust the brightness of the Vevshao V30 screen?
Operation video guide: https://youtu.be/QTbfZMoyF4Y
7、How to adjust the color (color temperature) of Vevshao V30 images?
Operation video guide: https://youtu.be/RE-AjMWH_h8
8、How does Vevshao V30 trigger autofocus?
Operation video guide：https://youtu.be/qE3tK0w1NmQ
9、How to calibrate the autofocus point when the focus point of Vevshao V30 projector is not clear?
Operation video guide:https://youtu.be/teiOWcnquzQ
Step：
1. Go to "Settings"
2. Find 'Keystone Settings',
3. Then turn on "Auto Focus"
4. Press the "Menu" key 6 times
5. Select "回到光耦" and click OK
6. Click the remote control "F+" to adjust the picture clearly
7. Select "自动对焦校准" and click OK, a pop-up window "成功" will appear at the bottom of the picture
8. Select "角度校准" and click OK, a pop-up window "成功" will appear at the bottom of the picture
10、How to adjust corner keystone correction for Vevshao V30 projection from the side?
Operation video guide: https://youtu.be/fpEIKlZhIC0
11、How to restore the factory of Vevshao V30 projector?
Operation video guide: https://youtu.be/n2gOckdiYu0
12、How to check the product system firmware information version of Vevshao V30?
Operation video guide：https://youtu.be/HBuaw_h707g
13、How to install input methods in different languages in Projector？
Operation video guide：https://youtu.be/aMaFvpx-UD8
Step：
Input method installation package download: https://drive.google.com/drive/folders/12FZ3rsLOCAgq16BO2QalrDzlfsNfD8Yy
1. After downloading, copy the input method APK installation package to the U disk.
2. Insert the U disk copy into the USB port of the Android projector
3. Use the remote control to enter the projector's file management and find the installation package on the U disk
4. Select the APK file, press OK, and install it according to the prompts.
5. In the "Settings" of the projector, find the position of the keyboard input method switch, and switch to the input method you installed. Different projectors switch in different positions.
6. Switch the keyboard input method to the input method "Leankey Keyboard" that was just installed, and you can test it. When entering text on other apps, a virtual keyboard will pop up, and you can switch languages in different countries by clicking the circular icon in the keyboard. .
14、How to set the Vevshao V30 to directly enter the HDMI signal channel after booting?
Operation video guide: https://youtu.be/EJ1KaUA9Kog
15、How to enable the HDMI CEC function of Vevshao V30?
Operation video guide：https://youtu.be/k0tRwI_urGM
16、How to enable the HDMI ARC function of Vevshao V30?
Operation video guide：https://youtu.be/Rz5GP4AjgEs
17、How to adjust the fan speed of Vevshao V30?
Operation video guide：https://youtu.be/jRdZOGFAXNA
18、How to choose the correct power bank to power Vevshao V30 projector?
Operation video guide：https://youtu.be/ZUdygIDzzuA
19、How does Vevshao V30 connect to the hard disk？
Operation video guide：https://youtu.be/oFqjuMR0vL0

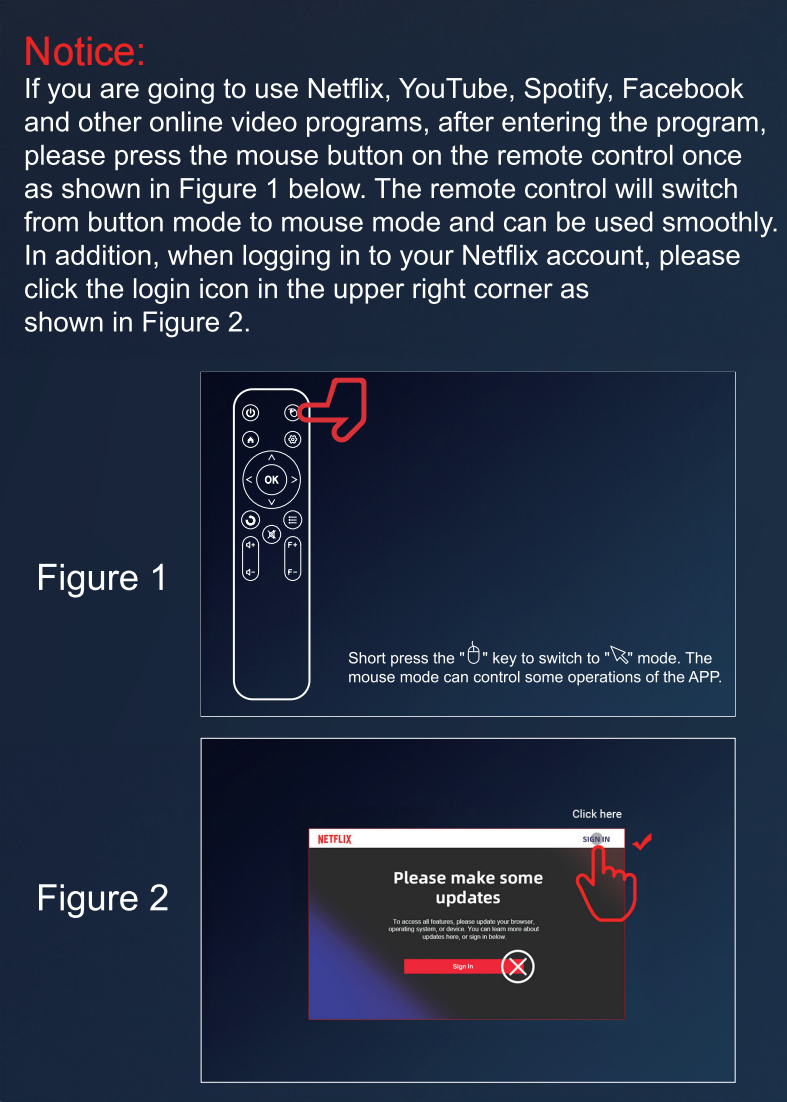

20、How to call out the mouse function of Vevshao V30?
Operation video guide：
21、How to use Vevshao V30 projector to watch 3D movies with 3D glasses, and how to play 3D?
1. To use the correct DLP shutter 3D glasses
2. To play the correct 3D video, such as 3D video arranged by SBS（side by side）, 3D video arranged by TNB（Top and bottom）.
3. Use MX Player to play the 3D source in the U disk. There is a test 3D source in the MX player.
Supports 3D video sources input by HDMI interface,
but does not support 3D video sources of online video.
4. After opening the 3D Video, operate according to the video on the following website.
Operation video guide: https://youtu.be/kHANZqKQ65I
About 3D
Read U disk through USB interface, play 3D video with MX player, support side by side, top and bottom shutter 3D video.
Among them, videos in H265 and AVS formats can support up to 4K/30HZ.
Other AVI, MP4 and other formats of video can support up to 1080p/60Hz, but do not support 4K.
HDMI interface can support Blu-ray DVD to play 3D, support Side by side, Top and bottom arranged 3D video
The 1080p version of youtube pre-installed on the projector does not support switching to 3D mode.
22、How to solve Fire TV stick 4K connected to the projector to play movies no sound？
Turn off Dolby in the setting sound of Fire TV stick 4K.
Step："setting"----"display&Sound"---"Audio"---"Dolby digital output"---"Dolby digital plus OFF", Turn off Dolby，Do it a few times，Confirm whether Dolby is successfully turned off.
Tips: Some sources can work normally without turning off Dolby and setting them to automatic mode. If there is still no sound in automatic mode, you must turn off Dolby.
Operation video guide：https://youtu.be/2S77xzLHC84
